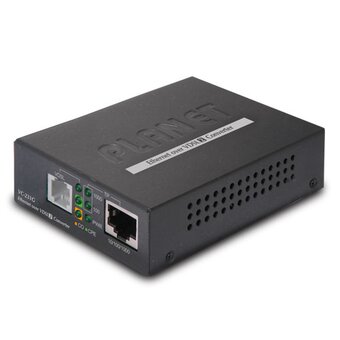

Медиаконвертор Planet (VC-231G)

Hardware Specifications LAN Ports 1 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports VDSL Port 1 VDSL2 RJ11 female phone jack Twisted-pair telephone wires (AWG-24 or better) up to 1.4km Phone Port Additional splitter for POTS connection Dimensions (W x D x H) 97 x 70 x 26 mm Weight 184g Power Requirements DC 5V, 2A external power LED Indicators 1 power: Green 1 1000BASE-T LNK/ACT: Green 1 100BASE-TX LNK/ACK: Green 1 VDSL:Green 1 CO: Green 1 CPE: Green Housing Metal DIP Switch & Functionality 4-position DIP switch CO or CPE mode selectable Selectable G.INP and interleaved mode Selectable target Band plan Selectable target SNR mode Switch Specifications Switch Processing Scheme Store-and-Forward Address Table 2K entries Flow Control Back pressure for half duplex IEEE 802.3x pause frame for full duplex Maximum Packet Size 1522bytes System Specifications VDSL Compliance VDSL-DMT: ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a support) ITU-T G.993.5 G.vectoring ITU-T G.998 G.INP ADSL Compliance Capable of ADSL2/2+ standard: ITU G.992.3 G.dmt.bis ITU G.992.5 G.dmt.bisplus Data Rate: Up to 24Mbp Performance*(Downstream/Upstream) CO, Interleave, Asym, 8dB 　200M -> 190Mbps/87Mbps 　400M -> 161Mbps/60Mbps 　600M -> 118Mbps/36Mbps 　800M -> 59Mbps/24Mbps 　1000M -> 47Mbps/7Mbps 　1200M -> 39Mbps/4Mbps 　1400M -> 25Mbps/4Mbps CO, Interleave, Sym, 8dB 　200M -> 147Mbps/139Mbps 　400M -> 112Mbps/110Mbps 　600M -> 75Mbps/73Mbps 　800M -> 44Mbps/44Mbps 　1000M -> 26Mbps/25Mbps 　1200M -> 24Mbps/13Mbps 　1400M -> 20Mbps/9Mbps G.INP, ASym, 8dB 　200M -> 197Mbps/101Mbps 　400M -> 168Mbps/65Mbps 　600M -> 109Mbps/34Mbps 　800M -> 65Mbps/20Mbps 　1000M -> 53Mbps/7Mbps 　1200M -> 44Mbps/4Mbps 　1400M -> 28Mbps/4Mbps G.INP, sym, 8dB 　200M -> 150Mbps/150Mbps 　400M -> 117Mbps/117Mbps 　600M -> 77Mbps/77Mbps 　800M -> 43Mbps/43Mbps 　1000M -> 29Mbps/28Mbps 　1200M -> 27Mbps/15Mbps 　1400M -> 22Mbps/10Mbps CO, Interleave, Asym, 12dB 　200M -> 178Mbps/84Mbps 　400M -> 143Mbps/53Mbps 　600M -> 99Mbps/32Mbps　 　800M -> 48Mbps/22Mbps 　1000M -> 41Mbps/5Mbps 　1200M -> 33Mbps/3Mbps 　1400M -> 23Mbps/3Mbps CO, Interleave, Sym, 12dB 　200M -> 135Mbps/127Mbps 　400M -> 96Mbps/96Mbps 　600M -> 61Mbps/59Mbps 　800M -> 40Mbps/40Mbps 　1000M -> 23Mbps/18Mbps 　1200M -> 22Mbps/9Mbps 　1400M -> 16Mbps/7Mbps G.INP, Asym, 12dB 　200M -> 185Mbps/89Mbps 　400M -> 148Mbps/54Mbps 　600M -> 95Mbps/32Mbps 　800M -> 58Mbps/14Mbps 　1000M -> 46Mbps/6Mbps 　1200M -> 37Mbps/3Mbps 　1400M -> 25Mbps/3Mbps G.INP, Sym, 12dB 　200M -> 140Mbps/140Mbps 　400M -> 97Mbps/97Mbps 　600M -> 60Mbps/60Mbps 　800M -> 35Mbps/35Mbps 　1000M -> 26Mbps/21Mbps 　1200M -> 25Mbps/11Mbps 　1400M -> 18Mbps/8Mbps Standards Conformance Standards Compliance IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-duplex flow control IEEE 802.1p Class of Service ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a support) ITU-T G.993.5 G.Vectoring & G.INP ITU-T G.998
